Automatic air electrostatic spray gun LE30
No.
BF LE30
Intro.
Automatic air atomizing electrostatic spray gun
Electrostatic series LE30

Advantage

Medium pressure atomization, 1 kg/cm2 has good atomization performance and high transfer efficiency!

The paint valve and return valve are external, maintenance simple, low-cost, and highly reliable!

It can be metered when spraying; and reflowed when not spraying. The film thickness is easy to control. High solid content and metallic paint coatings can be fully flowed and stirred for use!

Fully insulated electrostatic spray gun design, less paint re-wrap, saving paint, overcoming the electric leakage of highly conductive and water-based paints. To satisfy the requirements of various paints!

With external high voltage and external high voltage design, users can choose the best solution according to their needs!

Long-life tungsten steel needle tip, suitable for switching on and off once per second!

Specification

Model

LE30-A

LE30-B

High voltage type

External HV

Internal HV

HV Controller

BPS 100/BPS290

IPS 930E

Size (L x Dia.)

318 ×80 mm

318×80 mm

Weight

1550g

1870g

Flat nozzle

Standard

Standard

Round nozzle

Option metal / Plastic steel

Paint valve

External

External

Dumping valve

External

External

Air consumption max.

600 NL/min.

600 NL/min.

Resistance

50 Meg -Ohm

150 Meg -Ohm

Atomizing pressure

0.5~1.5kg/cm 2

0.5~1.5kg/cm 2

Weight( Gun with bracket)

2540g

2860g


Nozzle selection

Model

Stainless steel round nozzle

RS

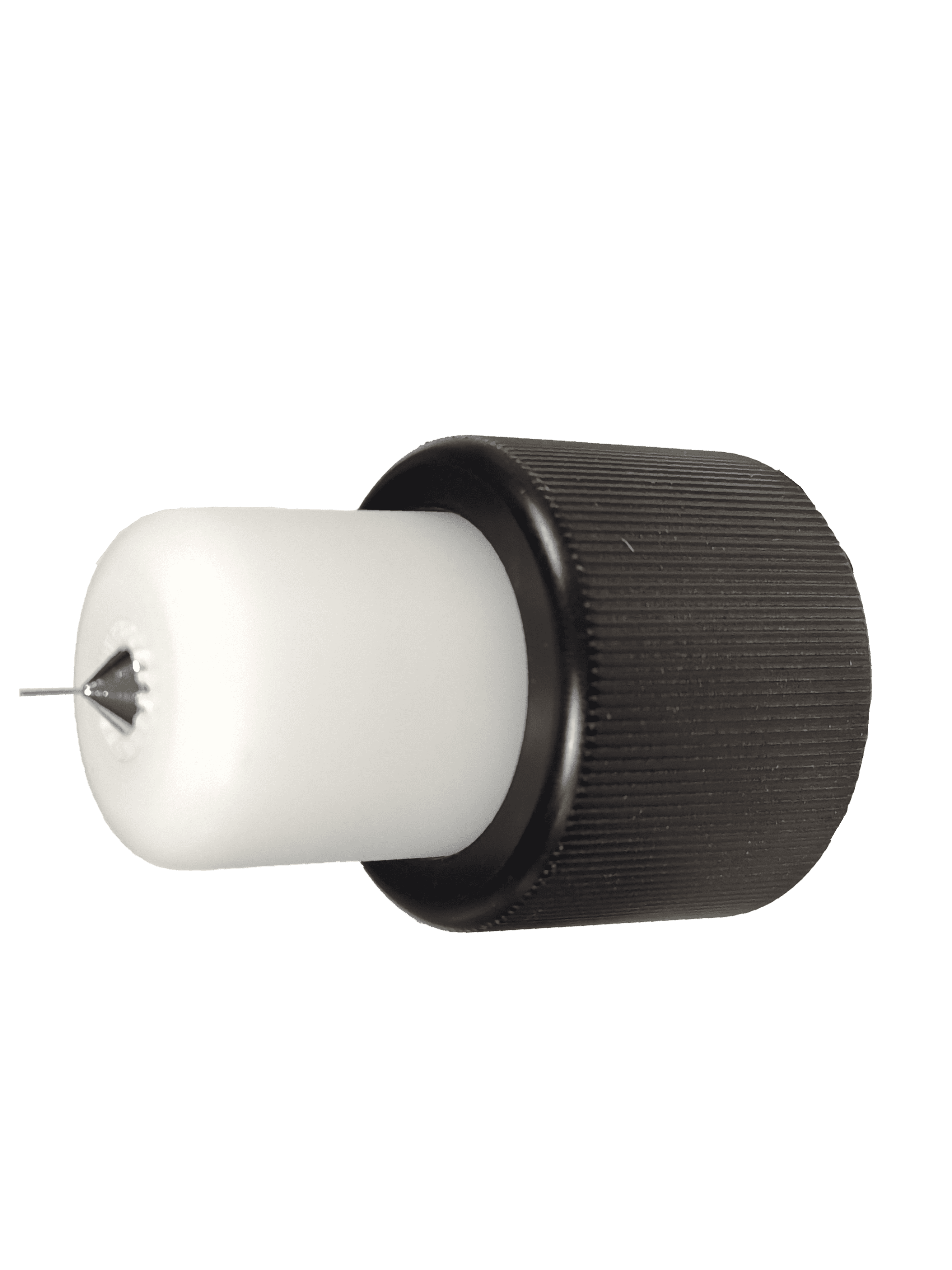

Plastic steel round nozzle

RP

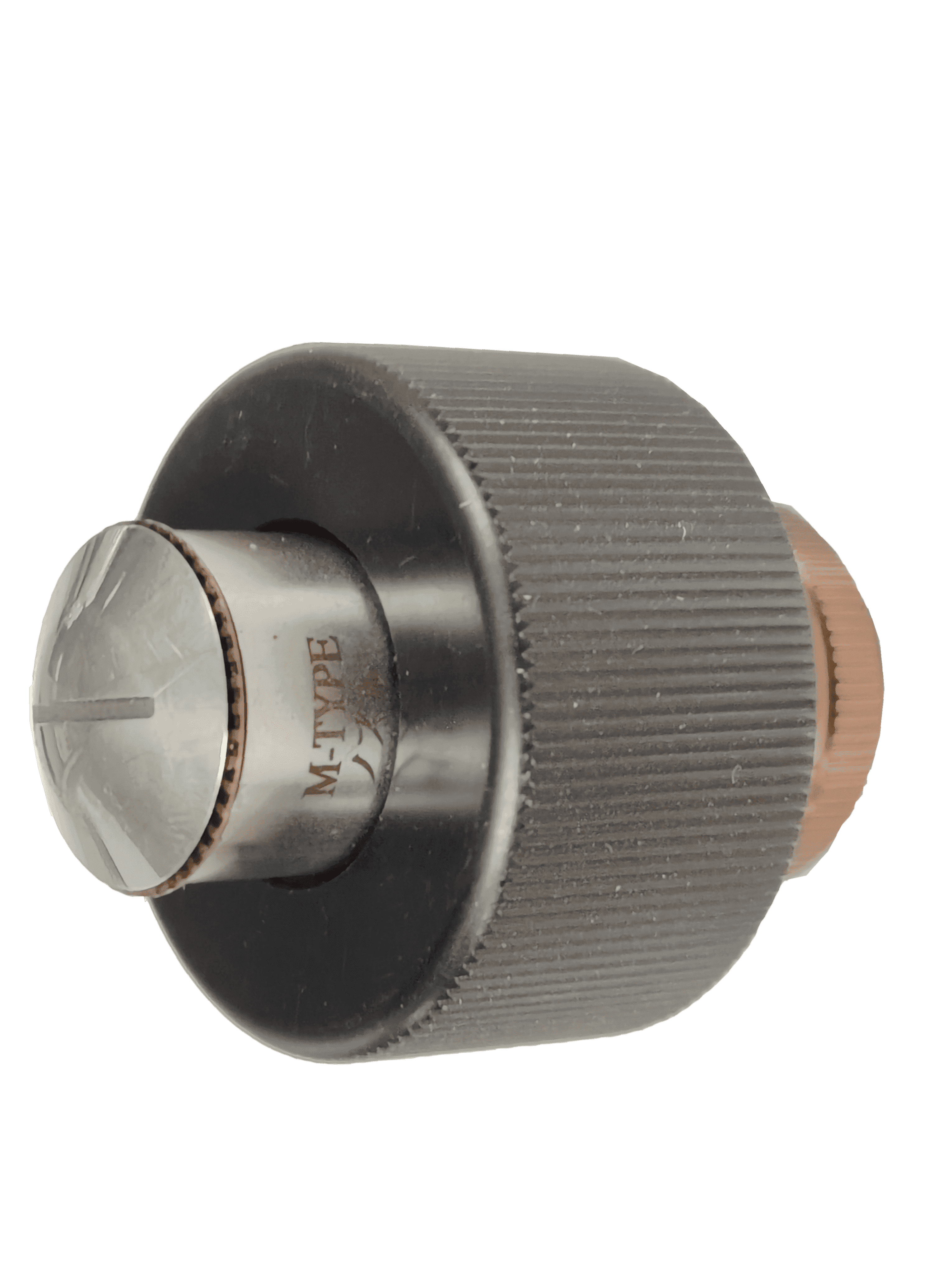

Flat nozzle

FP
